Tactical Fiber
- For outdoor deployment needs we offer one or multi-strand tactical fiber cables.
- The other end is usually a 60 cm fanout with FC/APC or SC/APC connector to connect to RFoF chassis based or standalone RFoF modules
- All connectors and fan outs are customized to customer requirements.
- One end is typically the ODVA multi termini connector to match the connector on the outdoor RFoF enclosure
Multi Strand Custom Tactical Fiber Cable Samples:
ODVA MPO connector and FC/APC fanout
QPC Q-Link connectors are both ends

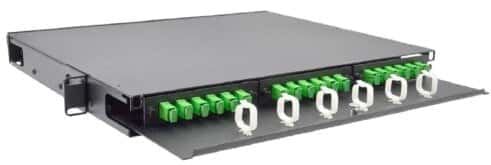

Optical Splitters
Customizable 1U splitter chassis
Up to 24 connectors
Up to 3 LGX style panels
Any connector type
1x2 1x4, 1x8, 1x16 options
Up to 8 sets of 1x2 splitter
Any split ratio (50/50, 25/75,….)
Slide-out tray
Specifications
| Splitter | 1x2 | 1x4 | 1x8 | 1x16 |
|---|---|---|---|---|
| Operation Wavelength | 1260-1600 | 1260-1600 | 1260-1600 | 1260-1600 |
| Insertion Loss dB (Max) | < 4.0 | < 7.3 | < 10.7 | < 13.7 |
